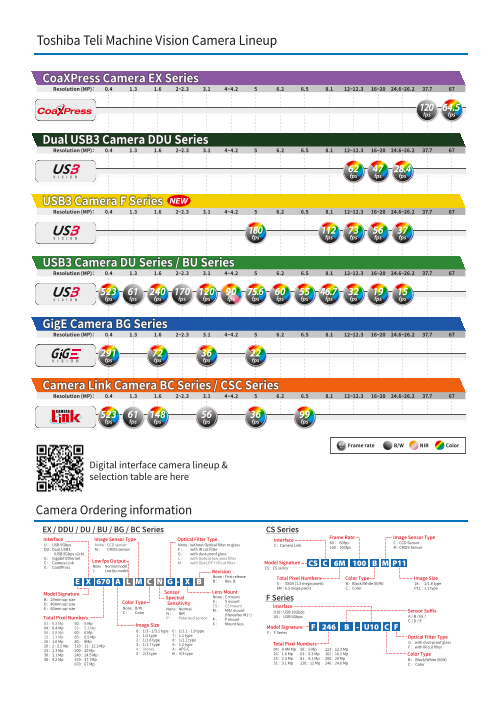

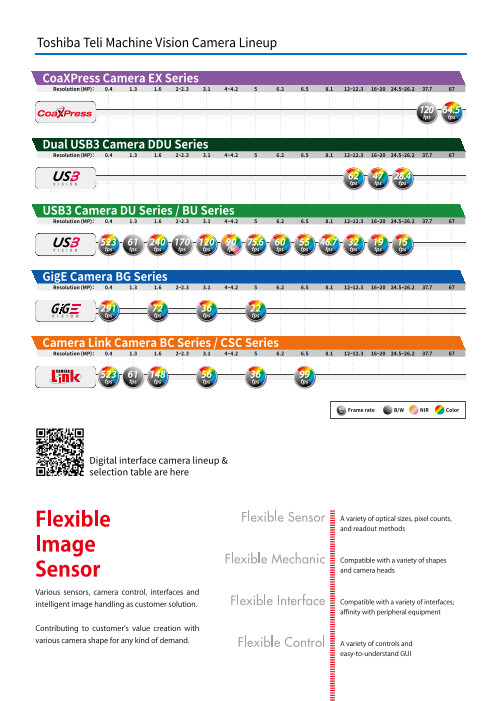

Toshiba Teli Machine Vision Camera Lineup CoaXPress Camera EX Series Resolution (MP)： 0.4 1.3 1.6 2~2.3 3.1 4~4.2 5 6.2 6.5 8.1 12~12.3 16~20 24.6~26.2 37.7 67     Dual USB3 Camera DDU Series Resolution (MP)： 0.4 1.3 1.6 2~2.3 3.1 4~4.2 5 6.2 6.5 8.1 12~12.3 16~20 24.6~26.2 37.7 67       USB3 Camera F Series  Resolution (MP)： 0.4 1.3 1.6 2~2.3 3.1 4~4.2 5 6.2 6.5 8.1 12~12.3 16~20 24.6~26.2 37.7 67           USB3 Camera DU Series / BU Series Resolution (MP)： 0.4 1.3 1.6 2~2.3 3.1 4~4.2 5 6.2 6.5 8.1 12~12.3 16~20 24.6~26.2 37.7 67                           GigE Camera BG Series Resolution (MP)： 0.4 1.3 1.6 2~2.3 3.1 4~4.2 5 6.2 6.5 8.1 12~12.3 16~20 24.6~26.2 37.7 67         Camera Link Camera BC Series / CSC Series Resolution (MP)： 0.4 1.3 1.6 2~2.3 3.1 4~4.2 5 6.2 6.5 8.1 12~12.3 16~20 24.6~26.2 37.7 67               Frame rate B/W NIR Color Digital interface camera lineup & selection table are here Camera Ordering information EX / DDU / DU / BU / BG / BC Series CS Series Interface Image Sensor Type Optical Filter Type Interface Frame Rate Image Sensor Type U : USB �Gbps None : CCD sensor None : without Optical filter or glass C : Camera Link �� : ��fps C : CCD Sensor DU : Dual USB� M : CMOS sensor F : with IR cut filter ��� : ���fps M : CMOS Sensor (USB �Gbps x�ch) G : with dust-proof glass G : Gigabit Ethernet Low fps Output L : with Optical low-pass filter C : Camera Link M : with Opt-LPF + IR cut filter Model Signature        X : CoaXPress None : Normal model L : Low fps model CS : CS series Revision None : First release            B : Rev. B Total Pixel Numbers Color Type Image Size S : SXGA (�.� mega pixels) B : Black/White (B/W) �� : �/�.� type �M : �.� mega pixels C : Color P�� : �.� type Model Signature Sensor Lens Mount B : ��mm sqr size Spectral None : C mount F Series D : ��mm sqr size Color Type Sensitivity S : S mount E : ��mm sqr size None : B/W CS : CS mount None : Normal Interface C : Color M : M�� mount N : NIR U�� : USB ��Gbps Sensor Suffix Total Pixel Numbers (Hereafter M�~) P : Polarized sensor U� : USB �Gbps A / B / BL / F : F mount �� : �.� Mp �� : � Mp C / D / E X : Mount less �� : �.� Mp �� : �.� Mp Image Size Model Signature        �� : �.� Mp �� : � Mp � : �/� - �/�.� type � : �/�.� - �.� type F : F Series �� : �.� Mp �� : �.� Mp � : �/� type � : �.� type Optical Filter Type �� : �.� Mp �� : �Mp � : �/�.� type � : �/�.� type �� : � - �.� Mp ��� : �� - ��.� Mp � : �/�.� type � : �.� type Total Pixel Numbers G : with dust-proof glass �� : �.� Mp ��� : �� Mp � : (none) A : APS-C ��： �.�M Mp �� : � Mp ��� : ��.� Mp F : with IR cut filter �� : �.� Mp ��� : ��.� Mp � : �/� type B : �/� type ��： �.� Mp �� : �.� Mp ��� : ��.� Mp Color Type �� : �.� Mp ��� : ��.�Mp �� : �.� Mp �� : �.� Mp ��� : �� Mp B : Black/White (B/W) ��� : �� Mp �� : �.� Mp ��� : �� Mp ��� : ��.� Mp C : Color

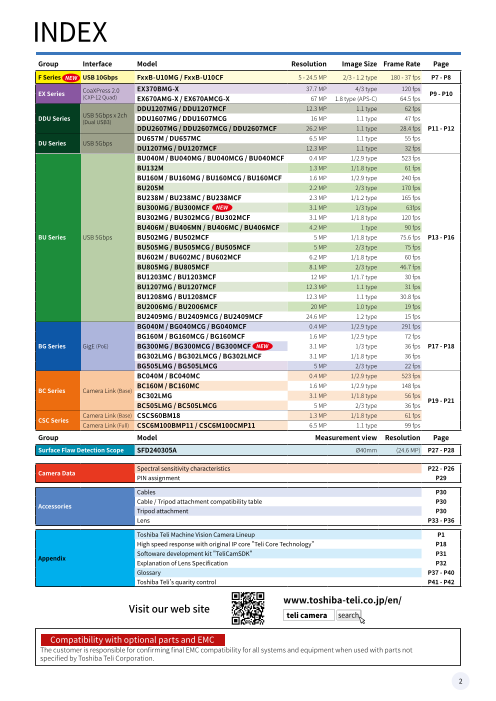

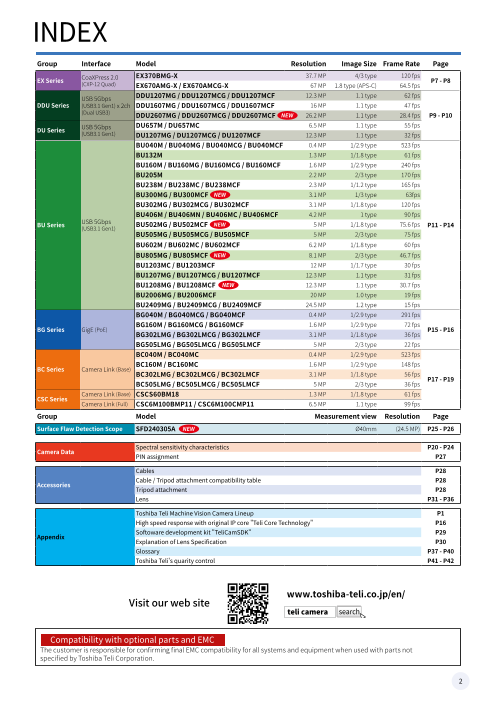

INDEX Group Interface Model Resolution Image Size Frame Rate Page F Series NEW USB 10Gbps FxxB-U10MG / FxxB-U10CF 5 - 24.5 MP 2/3 - 1.2 type 180 - 37 fps P7 - P8 EX Series CoaXPress 2.0 EX370BMG-X 37.7 MP 4/3 type 120 fps (CXP-12 Quad) P9 - P10 EX670AMG-X / EX670AMCG-X 67 MP 1.8 type (APS-C) 64.5 fps DDU1207MG / DDU1207MCF 12.3 MP 1.1 type 62 fps DDU Series USB 5Gbps x 2ch (Dual USB3) DDU1607MG / DDU1607MCG 16 MP 1.1 type 47 fps DDU2607MG / DDU2607MCG / DDU2607MCF 26.2 MP 1.1 type 28.4 fps P11 - P12 DU657M / DU657MC 6.5 MP 1.1 type 55 fps DU Series USB 5Gbps DU1207MG / DU1207MCF 12.3 MP 1.1 type 32 fps BU040M / BU040MG / BU040MCG / BU040MCF 0.4 MP 1/2.9 type 523 fps BU132M 1.3 MP 1/1.8 type 61 fps BU160M / BU160MG / BU160MCG / BU160MCF 1.6 MP 1/2.9 type 240 fps BU205M 2.2 MP 2/3 type 170 fps BU238M / BU238MC / BU238MCF 2.3 MP 1/1.2 type 165 fps BU300MG / BU300MCF NEW 3.1 MP 1/3 type 63fps BU302MG / BU302MCG / BU302MCF 3.1 MP 1/1.8 type 120 fps BU406M / BU406MN / BU406MC / BU406MCF 4.2 MP 1 type 90 fps BU Series USB 5Gbps BU502MG / BU502MCF 5 MP 1/1.8 type 75.6 fps P13 - P16 BU505MG / BU505MCG / BU505MCF 5 MP 2/3 type 75 fps BU602M / BU602MC / BU602MCF 6.2 MP 1/1.8 type 60 fps BU805MG / BU805MCF 8.1 MP 2/3 type 46.7 fps BU1203MC / BU1203MCF 12 MP 1/1.7 type 30 fps BU1207MG / BU1207MCF 12.3 MP 1.1 type 31 fps BU1208MG / BU1208MCF 12.3 MP 1.1 type 30.8 fps BU2006MG / BU2006MCF 20 MP 1.0 type 19 fps BU2409MG / BU2409MCG / BU2409MCF 24.6 MP 1.2 type 15 fps BG040M / BG040MCG / BG040MCF 0.4 MP 1/2.9 type 291 fps BG160M / BG160MCG / BG160MCF 1.6 MP 1/2.9 type 72 fps BG Series GigE (PoE) BG300MG / BG300MCG / BG300MCF NEW 3.1 MP 1/3 type 36 fps P17 - P18 BG302LMG / BG302LMCG / BG302LMCF 3.1 MP 1/1.8 type 36 fps BG505LMG / BG505LMCG 5 MP 2/3 type 22 fps BC040M / BC040MC 0.4 MP 1/2.9 type 523 fps BC160M / BC160MC 1.6 MP 1/2.9 type 148 fps BC Series Camera Link (Base) BC302LMG 3.1 MP 1/1.8 type 56 fps P19 - P21 BC505LMG / BC505LMCG 5 MP 2/3 type 36 fps Camera Link (Base) CSCS60BM18 1.3 MP 1/1.8 type 61 fps CSC Series Camera Link (Full) CSC6M100BMP11 / CSC6M100CMP11 6.5 MP 1.1 type 99 fps Group Model Measurement view Resolution Page Surface Flaw Detection Scope SFD240305A Ø40mm (24.6 MP) P27 - P28 Spectral sensitivity characteristics P22 - P26 Camera Data PIN assignment P29 Cables P30 Cable / Tripod attachment compatibility table P30 Accessories Tripod attachment P30 Lens P33 - P36 Toshiba Teli Machine Vision Camera Lineup P1 High speed response with original IP core "Teli Core Technology" P18 Softoware development kit "TeliCamSDK" P31 Appendix Explanation of Lens Specification P32 Glossary P37 - P40 Toshiba Teli's quarity control P41 - P42 www.toshiba-teli.co.jp/en/ Visit our web site teli camera search Compatibility with optional parts and EMC The customer is responsible for confirming final EMC compatibility for all systems and equipment when used with parts not specified by Toshiba Teli Corporation. 2

For machine vision applications and new application fields For Machine Vision For AI For Robot Vision For New Application

For machine vision applications and new application fields For Machine Vision For AI For Robot Vision For New Application

     Peripherals are here

     Peripherals are here

F Series USB ��Gbps Camera  • Featuring Sony Pregius S High-Speed Sensor Delivering even faster, higher-resolution imaging than ever before • USB type C Compact, reversible, and built for high-speed performance • Debugging Solutions    Col  or Our log visualizer ensures faster troubleshooting and greater system stability Debugging Solutions Usability - Mode Switching: Drag, measure, zoom in/out - Shortcut Support: Shift/Ctrl + mouse wheel for scroll and zoom Log Visualizer Wave - Menu Bar: Open, Capture, Save, Find, Mark, etc. Menu Measure Zoom in Zoom out F04A--U55BBGG 0 001122334455 C CAAMMEERRAA-A-A Conttrroll Visualize Your Logs for Smarter Debugging TThhrreeaadd A Applications TThhrreeaadd BB - Debugging during camera control application development A tool designed to visualize camera SSttrreeaam - Analyzing SDK/API call timing control and SDK logs in chronological SStrtereaamm P Poorrtt 0 - Visualizing USB� Vision / GigE Vision / CoaXPress events order, streamlining development and Messsagee debugging. Based on the TeliViewer UI, UU33VV E Evveentt Benefits it combines intuitive operation with GPIIO LLininee 00 ((RRaaww)) - Quickly identify issues by visualizing complex logs detailed log analysis. LLininee 00 LLininee 1 1 - Flexible customization with external parameter support LLininee 2 2 2 - Low learning curve thanks to TeliViewer-compatible UI 211,1,13344,1,10000 uuss 8800 9900 10 20 30 40 50 60 70 80 90 10 20 30 40 50 * Patent Pending 21,,1344,,200 us 10 20 30 40 50 60 70 80 90 21,,1344,,300 us 10 20 30 40 50 Waveform window Key Features Camera Lineup - Outline Specifications Integrated Display of SDK, Camera, and User Logs Wave Wave B/W Camera Model - Organizes API calls, internal calls, events, and F04A-U5BG 0012345 CAMERA-A F04A-U5BG 0012345 CAMERA-A streams in a hierarchical structure. Control Control Model Name Pixels Resolution Frame rate Thread A Thread A (H x V) (fps) Sensor Shutter Optical Format Pixel size (type) (μm) - Combines Enter/Exit logs for clear process flow Stream Stream [#800000] [#000380] visualization. F��B-U��MG � MP �,��� x �,��� ��� IMX��� Global �/�.� �.�� x �.�� Stream Port 0 Stream Port 0 24.064 us 21,134,189 us 21,134,213 us Graphical Waveform Window 21,134,100 us 80 90 10 20 30 40 50 60 21,134,100 us 80 90 10 20 30 40 50 60 F��B-U��MG �.� MP �,��� x �,��� ��� IMX��� Global �/� �.�� x �.�� 21,134,200 us 21,134,200 us タイムスケールの上に F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �/�.� �.�� x �.�� - Horizontal axis: timeline; Marking too（l in red） Meライaンs位u置rのe時m刻をe表n示t tools（ in red） タイムスケールと同じ桁数 Vertical axis: thread/port units. F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� - Displays API calls and events as bars with zoom F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� Log View and scroll support. F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� - Marking and Measurement tools for easy interval Item Type Cetegory Enter Time Exit Time Device Thread Info Process-1 Control User 21,134,177 us 21,134,352 us F04A-U5BG 0012345 0x0000112c SetExposureTime Control API 21,134,202 us 21,134,351 us F04A-U5BG 0012345 0x0000112c ExposureTime = 50 us analysis. Color Camera Model RegWrite Control API 21,134,210 us 21,134,234 us F04A-U5BG 0012345 0x0000112c WriteMemCmd Control Cam 21,134,213 us 21,134,222 us F04A-U5BG 0012345 0x0000112c WriteMemAck Control Cam 21,134,229 us 21,134,233 us F04A-U5BG 0012345 0x0000112c Timeline View RegRead Control API 21,134,251 us 21,134,349 us F04A-U5BG 0012345 0x0000112c ReadMemCmd Control Cam 21,134,295 us 21,134,305 us F04A-U5BG 0012345 0x0000112c Model Name Pixels Resolution Frame rate ReadMemAck Control Cam 21,134,344 us 21,134,348 us F04A-U5BG 0012345 0x0000112c - Displays logs in a table format. (H x V) (fps) Sensor Shutter Optical Format Pixel size (type) (μm) GetCamImageBufferFrameCount Control API 21,134,241 us 21,134,294 us F04A-U5BG 0012345 0x000014bc RegRead Control API 21,134,249 us 21,134,290 us F04A-U5BG 0012345 0x0000112c - Supports sorting, searching, marking, and CSV ReadMemCmd Control Cam 21,134,252 us 21,134,262 us F04A-U5BG 0012345 0x000014bc F��B-U��CF � MP �,��� x �,��� ��� IMX��� Global �/�.� �.�� x �.�� ReadMemAck Control Cam 21,134,284 us 21,134,288 us F04A-U5BG 0012345 0x000014bc export. FrameTransferEnd Message Cam 21,134,192 us 21,134,195 us F04A-U5BG 0012345 0x000012ad ImageAcquired Stream API 21,134,196 us - F04A-U5BG 0012345 0x000013c0 F��B-U��CF �.� MP �,��� x �,��� ��� IMX��� Global �/� �.�� x �.�� - Grouping: User logs → SDK logs → Camera logs. Callback Stream API 21,134,206 us - F04A-U5BG 0012345 0x000013c0 FrameTriggerAccepted GPIO Cam 21,134,197 us - F04A-U5BG 0012345 - TriggerSource : Line0 ExposureActive GPIO Cam 21,134,197 us 21,134,205 us F04A-U5BG 0012345 - F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �/�.� �.�� x �.�� Stream Stream Cam 21,134,217 us 21,150,883 us F04A-U5BG 0012345 - Block ID : 0 Detail View Stream Leader Stream Cam 21,134,225 us 21,134,228 us F04A-U5BG 0012345 - Stream Payload Stream Cam 21,134,234 us 21,134,282 us F04A-U5BG 0012345 - 65,536 Bytes F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� Stream Payload Stream Cam 21,134,291 us 21,134,239 us F04A-U5BG 0012345 - 65,536 Bytes - Shows arguments, return values, and status for F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� selected logs. Timeline window F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� * Images are for illustrative purposes only. 7 * Camera lineup and specifications are subject to change without notice.

F Series USB ��Gbps Camera  • Featuring Sony Pregius S High-Speed Sensor Delivering even faster, higher-resolution imaging than ever before • USB type C Compact, reversible, and built for high-speed performance • Debugging Solutions    Col  or Our log visualizer ensures faster troubleshooting and greater system stability Debugging Solutions Usability - Mode Switching: Drag, measure, zoom in/out - Shortcut Support: Shift/Ctrl + mouse wheel for scroll and zoom Log Visualizer Wave - Menu Bar: Open, Capture, Save, Find, Mark, etc. Menu Measure Zoom in Zoom out F04A--U55BBGG 0 001122334455 C CAAMMEERRAA-A-A Conttrroll Visualize Your Logs for Smarter Debugging TThhrreeaadd A Applications TThhrreeaadd BB - Debugging during camera control application development A tool designed to visualize camera SSttrreeaam - Analyzing SDK/API call timing control and SDK logs in chronological SStrtereaamm P Poorrtt 0 - Visualizing USB� Vision / GigE Vision / CoaXPress events order, streamlining development and Messsagee debugging. Based on the TeliViewer UI, UU33VV E Evveentt Benefits it combines intuitive operation with GPIIO LLininee 00 ((RRaaww)) - Quickly identify issues by visualizing complex logs detailed log analysis. LLininee 00 LLininee 1 1 - Flexible customization with external parameter support LLininee 2 2 2 - Low learning curve thanks to TeliViewer-compatible UI 211,1,13344,1,10000 uuss 8800 9900 10 20 30 40 50 60 70 80 90 10 20 30 40 50 * Patent Pending 21,,1344,,200 us 10 20 30 40 50 60 70 80 90 21,,1344,,300 us 10 20 30 40 50 Waveform window Key Features Camera Lineup - Outline Specifications Integrated Display of SDK, Camera, and User Logs Wave Wave B/W Camera Model - Organizes API calls, internal calls, events, and F04A-U5BG 0012345 CAMERA-A F04A-U5BG 0012345 CAMERA-A streams in a hierarchical structure. Control Control Model Name Pixels Resolution Frame rate Thread A Thread A (H x V) (fps) Sensor Shutter Optical Format Pixel size (type) (μm) - Combines Enter/Exit logs for clear process flow Stream Stream [#800000] [#000380] visualization. F��B-U��MG � MP �,��� x �,��� ��� IMX��� Global �/�.� �.�� x �.�� Stream Port 0 Stream Port 0 24.064 us 21,134,189 us 21,134,213 us Graphical Waveform Window 21,134,100 us 80 90 10 20 30 40 50 60 21,134,100 us 80 90 10 20 30 40 50 60 F��B-U��MG �.� MP �,��� x �,��� ��� IMX��� Global �/� �.�� x �.�� 21,134,200 us 21,134,200 us タイムスケールの上に F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �/�.� �.�� x �.�� - Horizontal axis: timeline; Marking too（l in red） Meライaンs位u置rのe時m刻をe表n示t tools（ in red） タイムスケールと同じ桁数 Vertical axis: thread/port units. F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� - Displays API calls and events as bars with zoom F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� Log View and scroll support. F���B-U��MG ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� - Marking and Measurement tools for easy interval Item Type Cetegory Enter Time Exit Time Device Thread Info Process-1 Control User 21,134,177 us 21,134,352 us F04A-U5BG 0012345 0x0000112c SetExposureTime Control API 21,134,202 us 21,134,351 us F04A-U5BG 0012345 0x0000112c ExposureTime = 50 us analysis. Color Camera Model RegWrite Control API 21,134,210 us 21,134,234 us F04A-U5BG 0012345 0x0000112c WriteMemCmd Control Cam 21,134,213 us 21,134,222 us F04A-U5BG 0012345 0x0000112c WriteMemAck Control Cam 21,134,229 us 21,134,233 us F04A-U5BG 0012345 0x0000112c Timeline View RegRead Control API 21,134,251 us 21,134,349 us F04A-U5BG 0012345 0x0000112c ReadMemCmd Control Cam 21,134,295 us 21,134,305 us F04A-U5BG 0012345 0x0000112c Model Name Pixels Resolution Frame rate ReadMemAck Control Cam 21,134,344 us 21,134,348 us F04A-U5BG 0012345 0x0000112c - Displays logs in a table format. (H x V) (fps) Sensor Shutter Optical Format Pixel size (type) (μm) GetCamImageBufferFrameCount Control API 21,134,241 us 21,134,294 us F04A-U5BG 0012345 0x000014bc RegRead Control API 21,134,249 us 21,134,290 us F04A-U5BG 0012345 0x0000112c - Supports sorting, searching, marking, and CSV ReadMemCmd Control Cam 21,134,252 us 21,134,262 us F04A-U5BG 0012345 0x000014bc F��B-U��CF � MP �,��� x �,��� ��� IMX��� Global �/�.� �.�� x �.�� ReadMemAck Control Cam 21,134,284 us 21,134,288 us F04A-U5BG 0012345 0x000014bc export. FrameTransferEnd Message Cam 21,134,192 us 21,134,195 us F04A-U5BG 0012345 0x000012ad ImageAcquired Stream API 21,134,196 us - F04A-U5BG 0012345 0x000013c0 F��B-U��CF �.� MP �,��� x �,��� ��� IMX��� Global �/� �.�� x �.�� - Grouping: User logs → SDK logs → Camera logs. Callback Stream API 21,134,206 us - F04A-U5BG 0012345 0x000013c0 FrameTriggerAccepted GPIO Cam 21,134,197 us - F04A-U5BG 0012345 - TriggerSource : Line0 ExposureActive GPIO Cam 21,134,197 us 21,134,205 us F04A-U5BG 0012345 - F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �/�.� �.�� x �.�� Stream Stream Cam 21,134,217 us 21,150,883 us F04A-U5BG 0012345 - Block ID : 0 Detail View Stream Leader Stream Cam 21,134,225 us 21,134,228 us F04A-U5BG 0012345 - Stream Payload Stream Cam 21,134,234 us 21,134,282 us F04A-U5BG 0012345 - 65,536 Bytes F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� Stream Payload Stream Cam 21,134,291 us 21,134,239 us F04A-U5BG 0012345 - 65,536 Bytes - Shows arguments, return values, and status for F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� selected logs. Timeline window F���B-U��CF ��.� MP �,��� x �,��� �� IMX��� Global �.� �.�� x �.�� * Images are for illustrative purposes only. * Camera lineup and specifications are subject to change without notice. 8

High-speed Interface CoaXPress Camera EX Series EX Series Details are here. EX Series 60mm × 60mm × 80mm 280g Outline The EX Series is an integrated camera with a CoaXPress 2.0 interface. The use of CXP-12 Quad allows high-speed transfer of images. Incorporating 4/3 type to 1.8 type (APS-C) CMOS sensor, the EX Series provides a wide field of view. Measuring only 60 mm square, the chassis can be installed easily. The lens-mountless structure makes it possible to use different lenses according to the application requirements. Features Dimensions • 50Gbps transfer bandwidth provided by CoaXPress 2.0 CXP-12 Quad EX series - Bandwidth ten times wider than USB 5Gbps (USB 3.1 Gen1) - Bandwidth seven times wider than the Camera Link Full configuration • The electronic global shutter makes it possible to capture fast moving subjects sharply with minimal motion blur. • The optional F or M42 mount adapter makes it possible to use various �� �� �.� lenses, including those for single-lens reflex cameras. • "Teli Core Technolog y" contributes to the enhancement of the response speed of camera systems. • The EX Series can be connected to various image processing systems with a flexible and reliable long coaxial cable. �-M� Depth �.� Flange focus �（in air） �.� �� H� +�.��� � P.C.D �� � � � • TELI original software "TeliCamSDK" is available to free download as SDK. Depth � �� �-M� Depth �.� VGA（640×480） HD（1,280×720） Accessory information (options) VGA • CoaXPress cable P29 Full-HD（1,920×1,080） • Lens P36 HD 5M 5M（2,448×2,048） • Tripod attachment P27 • F-mount lens adaptor / M42-mount lens adaptor 12M（4,096×3,000） 37.7M（6,144×6,144） Camera data Full-HD 12M 67M（8,192×8,192） • Spectral sensitivity characteristics P22, 26 37.7M • Pin assignment P29 67M Wider shooting field of view with 50Gbps transfer bandwidth provided high resolution of 37.7 MP to 67MP by CoaXPress 2.0 CXP-12 Quad VGA（640×480）       HD（1,280×720） VGA   Full-HD（1,920×1,080）  HD 5M 5M（2,448×2,048）   12M（4,096×3,000）   37.7M（6,144×6,144）   Full-HD 12M 67M（8,192×8,192）  37.7M  67M 9                  �� �� ��.� ��.� �.�

EX Series Specifications Model EX370BMG-X EX670AMG-X EX670AMCG-X B/W | COLOR B/W Color Pixles 37.7M 67M Interface CoaXPress 2.0 CXP-12 Quad Imager 4/3 type GS-CMOS (EV2S36MB) 1.8 type GS-CMOS (EV2S67MB) 1.8 type GS-CMOS (EV2S67MC) Resolution 6,144(H) x 6,144(V) 8,192(H) x 8,192(V) 120 fps (CXP-12 Quad, Mono8) 64.5 fps (CXP-12 Quad, Mono8) 64.5 fps (CXP-12 Quad, Bayer8) Frame rate 42.1 fps (CXP-6 Quad, Mono8) 31.6 fps (CXP-6 Quad, Mono8) 31.6 fps (CXP-6 Quad, Bayer8) 21 fps (CXP-12, Mono8) 15.8 fps (CXP-12, Mono8) 15.8 fps (CXP-12, Bayer8) 10.7 fps (CXP-6, Mono8) 8 fps (CXP-6, Mono8) 8 fps (CXP-6, Bayer8) Pixel size 2.5μm x 2.5μm Electronic shutter MANUAL : 10μs to 1s Random Trigger Shutter : 10μs to 1s (Timed or Bulk mode), 200μs to Trigger width (TriggerWidth mode) Scan method Progressive Color filter - RGB primary color mosaic Standard sensitivity 2,350 lx 2,500 lx 2,100 lx (F5.6, 1/125s) (F8, 1/66.7s) (F5.6, 1/66.7s) 1 lx 2 lx Minimum sensitivity 2 lx (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +36dB, High gain mode : x4, (F1.4, Gain : +36dB, High gain mode : x4, Video level : 50%) Video level : 50%) LUT Input 12bit, Output 12bit Gain | High gain mode MANUAL : 0dB to +36dB | - MANUAL : 0dB to +36dB | OFF / x4 White balance - MWB, OPWB Sync System Internal synchronization Image output format Mono12p, Mono10p, Mono8 Bayer8 Readout mode All pixel, Scalable, Binning, Mirroring, Flip All pixel, Scalable, Mirroring, Flip Power supply PoCXP or External connector : 24V (18.5V~26V) ch1 only Power consumption 13.6W 13.3W 13.6W (All-pixels readout, CXP-12 Quad) (All-pixels readout, CXP-12 Quad) (All-pixels readout, CXP-12 Quad) Lens mount | Flange back Mount less (Φ50 H7) | 8mm External dimension 60(W) x 60(H) x 80(D) mm (not including protrusion) Mass Approx. 280 g Temperature : 0° C to 40° C (below 60° C on cabinet Operation Assurance surface, below 75° C on image sensor) Temperature : 0° C to 40° C (below 60° C on cabinet surface) Humidity : 10% to 90% (no condensation) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, CoaXPress, GenICam, IIDC2 10

Global Standard USB3 Camera / Dual USB3 Camera DU Series / DDU Series DU Series / DDU (Dual USB) Series Details are here. DU Series U Series 0mm × 40mm × 35mm 85g DD 4 40mm × 40mm × 35mm 90g Outline DU series has USB 5Gbps (USB 3.1 Gen 1) interface for image output and control. With Dual USB3 interfaces, the DDU series provides double the transfer bandwidth of conventional cameras with a single interface, making it possible to capture images at higher speed. The DU series is available with 6.5MP and 12.3MP resolution options whereas the DDU series is available with 12.3MP to 26.2MP resolution options. Compact and light, suitable for set in equipment. 3 years warranty. Features Dimensions Easy operation DU series • "Teli Core Technology" contributes to the enhancement of the response (5) 35 (7) speed of camera systems. 7.5 30 40 10 11 • Body size in most compact class is suitable for setting in equipment. • Power is supplied by USB cable. • e-CON connector is equipped. • TELI original software "TeliCamSDK" is available to free download as SDK. C Mount 2X3-M3 Depth3 2-M2 Depth4　 Various function 3-M3 Depth3 Guide hole 2 Depth3 • "Event notifications" camera notified status information via event Packet. • "BUS synchronization mode" synchronized exposure timing of multiple cameras. • "Bulk trigger mode" outputs multiple images by one trigger input.(*1) • "Sequential shutter mode" allows output several different setting image.(*2) 7.5 30 • "Image buffer" allows readout image data from host PC on demand.(*3) • "Scalable mode and binning mode" higher speed image scan is available.(*4) • "BERT function" measures correspondence quality of cables.(*5) DDU series *functions and modes of *1 to *5 above are different depend on model. �� � �� �.� �� �.� �� �� Accessory information (options) • USB3 cable P29 • Lens P33 - 36 • Tripod attachment P30 C mount �-M� depth� �-M� depth � Camera Data guide hole � depth� �-M� depth� • Spectral sensitivity characteristics P22, 25 - 26 • Pin assignment P29 �.� �� 11 �� 40 26 26 �� �� 16 �� 16 �� N.P. N.P. ��.� ��.� ��.� �� 18

DU Series / DDU Series Specifications Model*1 DU657M DU1207MG DDU1207MG DDU1607MG DDU2607MG B/W | COLOR B/W Pixles 6.5M 12.3M 16M 26.2 M Interface USB 5Gbps (USB3.1 Gen1, Only SuperSpeed is supported) USB 5Gbps (USB3.1 Gen1) x2ch (Only SuperSpeed is supported) corresponding to Dual USB3 Imager*2 1.1 type GS-CMOS 1.1 type GS-CMOS 1.1 type GS-CMOS 1.1 type GS-CMOS (TELI original) (IMX253LLR) (XGS16000) (GMAX0505) Resolution 2,560(H) x 2,560(V) 4,096(H) x 3,000(V) 4,000(H) x 4,000(V) 5,120(H) x 5,120(V) Frame rate Mono8 : 55 fps Mono8 : 32 fps <Dual / Single> <Dual / Single> <Dual / Single> Mono8 : 62 / 31 fps Mono8 : 47 / 23 fps Mono8 : 28.4/ 14.4 fps Pixel size 5.0μm x 5.0μm 3.45μm x 3.45μm 3.2μm x 3.2μm 2.5μm x 2.5μm MANUAL : 1.51μs to 16.11μs (Short MANUAL : 10μs to 200ms exposure mode), 26μs to 16s MANUAL : 30μs to 16s L : 25μs to 16s Electronic shutter Random Trigger Shutter : AE : 26μs to 1s AE : 30μs to 1s MANUAL : 30μs to 1s MANUA gger Shutter : Random Trigger Shutter : Random Trigger Shutter : AE : 25μs to 1s 10μs to 200ms (Edge / Bulk mode), Random Tri Random Trigger Shutter : 10μs to Trigger width (Level mode) 26μs to 16s (Edge / Bulk mode), 30μs to 16s (Edge / Bulk mode), 30μs to 1s (Edge / Bulk mode), dge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 25μs to 16s (E 50μs to Trigger width (Level mode) Scan method Progressive Standard sensitivity 900 lx (F5.6, 1/60s) 860 lx (F5.6, 1/32s) 1,600 lx (F5.6, 1/62s) 2,700 lx (F8, 1/50s) 1,300 lx (F8, 1/28.6s) Minimum sensitivity 16 lx 1 lx 4 lx 6 lx 2 lx (F2.8, Gain : x8, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain : x8, Video level : 50%) (F1.4, Digital gain : x8, Analog gain : x2, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain (Digital gain) MANUAL : x1 to x8 - - MANUAL : x1 to x8, AGC : x1 to x8 Analog gain - MANUAL : 0dB to +36dB, MANUAL : 0dB to +24dB, AGC : 0dB to +24dB AGC : 0dB to +24dB - MANUAL : x1 to x2 Sync System Internal / Bus synchronization Image output format Mono8 Mono12, Mono10, Mono8 Readout mode All pixel, Scalable, Binning, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 3.6W (maximum) 4.0W (maximum) 5.0W (maximum) 5.3W (maximum) Lens mount C-Mount External dimension 40 (W)mm x 40 (H)mm x 35 (D)mm (not including protrusion) Mass Approx. 85g Approx. 90g Temperature : -5° C to 45° C Temperature : -5° C to 45° C Operation Assurance Humidity : 10% to 90% (below 65° C on cabinet surface) Temperature : -5° C to 45° C (below 60° C on cabinet surface) (no condensation) Humidity : 10% to 90% Humidity : 10% to 90% (no condensation) (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MG : with Dust proof glass, *2 : GS-CMOS : Global shutter CMOS Model*1 DU657MC DU1207MCF DDU1207MCF DDU1607MCG DDU2607MCG DDU2607MCF B/W ／ COLOR COLOR Pixles 6.5M 12.3M 16M 26.2 M Interface USB 5Gbps (USB3.1 Gen1, Only SuperSpeed is supported) USB 5Gbps (USB3.1 Gen1) x2ch (Only SuperSpeed is supported) corresponding to Dual USB3 Imager*2 1.1 type GS-CMOS 1.1 type GS-CMOS 1.1 type GS-CMOS 1.1 type GS-CMOS (TELI original) (IMX253LQJ) (XGS16000) (GMAX0505) Resolution 2,560(H) x 2,560(V) 4,096(H) x 3,000(V) 4,000(H) x 4,000(V) 5,120(H) x 5,120(V) Frame rate Bayer8 : 55 fps Bayer8 / Mono8 : 31 fps <Dual / Single> <Dual / Single> <Dual / Single> Bayer8 / Mono8 : 62 / 31 fps Bayer8 : 47 / 23 fps Mono8 : 28.4/ 14.4 fps Pixel size 5.0μm x 5.0μm 3.45μm x 3.45μm 3.2μm x 3.2μm 2.5μm x 2.5μm MANUAL : 1.51μs to 16.11μs (Short MANUAL : 10μs to 200ms exposure mode), 26μs to 16s MANUAL : 30μs to 16s 25μs to 1s Electronic shutter Random Trigger Shutter : AE : 26μs to 1s AE : 30μs to 1s MANUAL : 30μs to 1s MANUAL : 25μs to 16s 10μs to 200ms (Edge / Bulk mode), Random Trigger Shutter : Random Trigger Shutter : Random Trigger Shutter : AE : Random Trigger Shutter : 10μs to Trigger width (Level mode) 26μs to 16s (Edge / Bulk mode), 30μs to 16s (Edge / Bulk mode), 30μs to 1s (Edge / Bulk mode), 25μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Color filter RGB primary color mosaic Standard sensitivity 2,200 lx (F5.6, 1/60s) 1,425 lx 2,800 lx (F5.6, 1/31s) (F5.6, 1/62s) 2,700 lx (F5.6, 1/50s) MCG：2,040 lx, MCF：2,470 lx (F8, 1/28.6s) MCF：3 lx Minimum sensitivity 40 lx 1 lx 6 lx 11 lx MCG：2 lx, (F2.8, Gain : x8, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain : x8, Video level : 50%) (F1.4, Digital gain : x8, Analog gain : x2, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain (Digital gain) MANUAL : x1 to x8 - - MANUAL : x1 to x8, AGC : x1 to x8 Analog gain - MANUAL : 0dB to +36dB, MANUAL : 0dB to +24dB, AGC : 0dB to +24dB AGC : 0dB to +24dB - MANUAL : x1 to x2 White Balance MWB, OPWB Sync System Internal / Bus synchronization Image output format Bayer8 RGB, BGR, YUV422, YUV411, Bayer12, Bayer10, Bayer8, Mono8 Bayer12, Bayer10, Bayer8 Readout mode All pixel, Scalable, Binning, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 3.6W (maximum) 4.5W (maximum) 5.0W (maximum) 5.3W (maximum) Lens mount C-Mount External dimension 40 (W)mm x 40 (H)mm x 35 (D)mm (not including protrusion) Mass Approx. 85g Approx. 90g Temperature : -5° C to 45° C Temperature : -5° C to 45° C Operation Assurance Humidity : 10% to 90% (below 65° C on cabinet surface) Temperature : -5° C to 45° C (below 60° C on cabinet surface) (no condensation) Humidity : 10% to 90% Humidity : 10% to 90% (no condensation) (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MCG : with Dust proof glass, MCF : with IR cut filter, *2 : GS-CMOS : Global shutter CMOS 12

Global Standard USB3 Camera BU Series BU Series Outline BU series have USB 5Gbps (USB3.1 Gen1) interface for image output and control. Details are here. Compact and light, suitable for set in equipment. 3 years warranty. Wide product range from 0.4M (523fps) to 24.6M (15fps). BU Series 29mm × 29mm × 16mm 33g Features Dimensions Easy operation *1 BU406M, BU406MN : a=32, b=16, c=4.5 • "Teli Core Technology" contributes to the enhancement of the *2 Other BU series : a=32.3, b=16, c=4.8 response speed of camera systems. • Body size in most compact class is suitable for setting in equipment. • Power is supplied by USB cable. • e-CON connector is equipped. a ±1 (10) • TELI original software "TeliCamSDK" is available to free download as SDK. 29 ±1 (16) b 8.9 10 Various function • "Event notifications" camera notified status information via event Packet. • "BUS synchronization mode" synchronized exposure timing of multiple cameras. • "Bulk trigger mode" outputs multiple images by one trigger input.(*1) C Mount 2-M2 Depth3.8 c 9 • "Sequential shutter mode" allows output several different setting image.(*2) • "Image buffer" allows readout image data from host PC on demand.(*3) • "Scalable mode and binning mode" higher speed image scan is available.(*4) • "BERT function" measures correspondence quality of cables.(*5) * functions and modes of *1 to *5 above are different depend on model. 3-M3 Depth3 Accessory information (options) • USB3 cable P29 Camera Data • Lens P33 - 36 • Spectral sensitivity characteristics P22 - 26 • Tripod attachment P30 • Pin assignment P29 Specifications Model*1 BU040M / BU040MG BU132M BU160M / BU160MG BU205M BU238M B/W | COLOR B/W Pixles 0.4M 1.3M 1.6M 2.2M 2.3M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1/2.9 type GS-CMOS 1/1.8 type GS-CMOS 1/2.9 type GS-CMOS 2/3 type GS-CMOS 1/1.2 type GS-CMOS (IMX287LLR) (EV76C560ABT) (IMX273LLR) (CMV2000-3E5M) (IMX174LLJ) Resolution 720(H) x 540(V) 1,280(H) x 1,024(V) 1,440(H) x 1,080(V) 2,048(H) x 1,088(V) 1,920(H) x 1,200(V) Frame rate Mono8 : 523 fps (High-fps mode), 437 fps (Normal mode) Mono8 : 61 fps Mono8 : 240 fps (High-fps mode), 227 fps (Normal mode) Mono8 : 170 fps Mono8 : 165 fps Pixel size 6.90μm x 6.90μm 5.3μm x 5.3μm 3.45μm x 3.45μm 5.5μm x 5.5μm 5.86μm x 5.86μm MANUAL : 1.08μs to 13.31μs (Short exposure mode), MANUAL : 1.08μs to 13.31μs (Short 20μs to 16s MANUAL : 30μs to 1s exposure mode), 20μs to 16s MANUAL : 30μs to 16s MANUAL : 30μs to 16s Electronic shutter AE : 20μs to 1s Random Trigger Shutter : AE : 20μs to 1s Random Trigger Shutter : Random Trigger Shutter : Random Trigger Shutter : 30μs to 1s (Edge / Bulk mode) Random Trigger Shutter : 30μs to 16s (Edge / Bulk mode), 30μs to 16s (Edge / Bulk mode), 20μs to 16s (Edge / Bulk mode), 20μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Standard sensitivity 2,800 lx (F5.6, 1/500s) 500 lx (F5.6, 1/62.5s) 3,000 lx (F4, 1/250s) 3,300 lx (F8, 1/200s) 3,300 lx (F8, 1/200s) Minimum sensitivity 2 lx 2 lx 3 lx 7 lx 7 lx (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +18dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : x8, Video level : 50%) (F1.4, Gain : +18dB, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0 to +36dB, AGC : 0 to +24dB MANUAL : 0dB to +18dB MANUAL : 0 to +36dB, AGC : 0 to +24dB MANUAL : x1 to x8 MANUAL : -6dB to +18dB Sync System Internal / Bus synchronization Image output format Mono12, Mono10, Mono8 Mono10, Mono8 Mono12, Mono10, Mono8 Mono8 Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, Decimation, Mirroring, Flip All pixel, Scalable, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 2.2W (maximum) 1.7W (maximum) 2.4W (maximum) 2.7W (maximum) 2.9W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 33g Approx. 32g Temperature : 0° C to 40° C Temperature : 0° C to 40° C Temperature : 0° C to 40° C Operation Assurance (below 60° C on cabinet surface) (below 50° C on cabinet surface) (below 60° C on cabinet surface) Temperature : 0° C to 40° C Humidity : 10% to 90% Humidity : 10% to 90% Humidity : 10% to 90% (below 50° C on cabinet surface) (no condensation) (no condensation) (no condensation) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MG : with Dust proof glass, *2 : GS-CMOS：Global shutter CMOS 13 29 ±1 20 6.5 18

BU Series Specifications Model*1 BU300MG NEW BU302MG BU406M BU406MN B/W | COLOR B/W Pixles 3.1M 4.2M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1/3 type GS-CMOS 1/1.8 type GS-CMOS 1.0 type GS-CMOS 1.0 type GS-CMOS (IMX900AMR) (IMX252LLR) (CMV4000-3E5M ) (CMV4000-3E12M ) Resolution 2,048(H) x 1,536(V) 2,048(H) x 2,048(V) Frame rate Mono8 : 64 fps Mono8 : 120 fps Mono8 : 90 fps Pixel size 2.25μm x 2.25μm 3.45μm x 3.45μm 5.5μm x 5.5μm MANUAL: 1.07μs to 5.49μs MANUAL : 1.08μs to 14.44μs (Short exposure mode), (Short exposure mode), 14μs to 16s 22μs to 16s MANUAL : 30μs to 16s Electronic shutter AE: 14μs to 1s AE : 30μs to 1s Random Trigger Shutter : 30μs to 16s (Edge / Bulk mode), Random Trigger Shutter: Random Trigger Shutter : 50μs to Trigger width (Level mode) 30μs to 16s (Edge or Bulk mode), 30μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Standard sensitivity 2,010 lx 3,250 lx 3,000 lx 2,400 lx (F5.6, 1/83.3s) (F5.6, 1/120s) (F11, 1/90s) (F11, 1/90s) Minimum sensitivity 1 lx 2 lx 3 lx (F1.4, Gain: +36dB, Video level: 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : x8, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL: 0 to +36dB, AGC: 0 to +24dB MANUAL : x1 to x8 Sync System Internal / Bus synchronization Image output format Mono12, Mono10, Mono8 Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 2.4W (maximum) 2.9W (maximum) 2.7W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 33g Approx. 32g Temperature : 0° C to 40° C Operation Assurance (below 60° C on cabinet surface) Temperature : 0° C to 40° C (below 50° C on cabinet surface) Humidity : 10% to 90% (no condensation) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MG : with Dust proof glass, MN : using NIR sensor *2 : GS-CMOS : Global shutter CMOS Model*1 BU502MG BU505MG BU602M BU805MG B/W | COLOR B/W Pixles 5M 5M 6.2M 8.1M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1/1.8 type GS-CMOS 2/3 type GS-CMOS 1/1.8 type RS-CMOS 2/3 type GS-CMOS (IMX547AAM) (IMX250LLR) (IMX178LLJ) (IMX546AAM) Resolution 2,448(H) x 2,048(V) 2,448(H) x 2,048(V) 3,072(H) x 2,048(V) 2,848(H) x 2,848(V) Frame rate Mono8 : 75.6 fps (High Framerate Mode), 74.9 fps (Standard Mode) Mono8 : 75 fps Mono8 : 60 fps Mono8 : 46.7 fps Pixel size 2.74μm x 2.74μm 3.45μm x 3.45μm 2.4μm x 2.4μm 2.74μm x 2.74μm MANUAL : 1.02μs to 2.47μs (Short exposure MANUAL : 1.08μs to 14.44μs (Short exposure mode), 22μs to 16s MANUAL : 23.3μs to 16s MANUAL : 1.02μs to 2.47μs (Short exposure mode), 10μs to 16s Electronic shutter Random Trigger Shutter : AE : 22μs to 1s AE : 23.3μs to 1s mode), 10μs to 16s 10μs to 16s (Edge / Bulk mode), Random Trigger Shutter : Random Trigger Shutter : Random Trigger Shutter : 30μs to 16s (Edge / Bulk mode), 23.3μs to 16s (Edge / Bulk mode), 10μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Standard sensitivity 2,710 lx 2,100 lx 2,100 lx 3,480 lx (F5.6, 1/83.3s) (F5.6, 1/75s) (F5.6, 1/62.5s) (F8, 1/52.6s) Minimum sensitivity 2 lx 2 lx 5 lx 1 lx (F1.4, Gain : +36dB, Video level: 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain: +36dB, Video level: 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0dB to +36dB MANUAL : 0 to +36dB, MANUAL : 0 to +24dB, AGC : 0 to +24dB AGC : 0 to +24dB MANUAL : 0dB to +36dB Sync System Internal / Bus synchronization Internal synchronization Internal / Bus synchronization Image output format Mono12, Mono10, Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, Binning, All pixel, Scalable, Binning, Mirroring, Flip Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 2.7W (maximum) 2.9W (maximum) 2.4W (maximum) 2.7W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 33g Temperature : 0° C to 40° C Temperature : 0° C to 40° C Operation Assurance (below 60° C on cabinet surface) (below 50° C on cabinet surface) Temperature : 0° C to 40° C (below 60° C on cabinet surface) Humidity : 10% to 90% (no condensation) Humidity : 10% to 90% (no condensation) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MG : with Dust proof glass *2 : GS-CMOS : Global shutter CMOS 14

BU Series Specifications Model*1 BU1207MG BU1208MG BU2006MG BU2409MG B/W | COLOR B/W Pixles 12.3M 20M 24.6M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1.1 type GS-CMOS 1/1.1 type GS-CMOS 1.0 type RS-CMOS 1.2 type GS-CMOS (IMX253LLR) (IMX545AAM) (IMX183CLK) (IMX540LLR) Resolution 4,096(H) x 3,000(V) 4,096(H) x 3,008(V) 5,472(H) x 3,648(V) 5,328(H) x 4,608(V) Frame rate Mono8 : 31 fps Mono8 : 30.8 fps Mono8：19 fps Mono8 : 15 fps Pixel size 3.45μm x 3.45μm 2.74μm x 2.74μm 2.4μm x 2.4μm 2.74μm x 2.74μm MANUAL : 1.51μs to 16.11μs MANUAL : 1.02μs to 2.47μs (Short exposure mode), (Short exposure mode), MANUAL : 56.4μs to 16s MANUAL :18μs to 16s Electronic shutter 26μs to 16s 14μs to 16s AE : 56.4μs to 1s Random Trigger Shutter : 18μs to 16s Random Trigger Shutter : 26μs to 16s Random Trigger Shutter : 14μs to 16s Random Trigger Shutter : 59.4μs to 16s (Edge / Bulk mode), (Edge / Bulk mode), (Edge / Bulk mode), (Edge / Bulk mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Standard sensitivity 860 lx 2,600 lx 1,210 lx 1,950 lx (F5.6, 1/32s) (F8, 1/35.7s) (F5.6, 1/19s) (F11, 1/20s) Minimum sensitivity 1 lx 1 lx 3 lx 1 lx (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0dB to +36dB MANUAL : 0dB to +24dB, AGC : 0dB to +24dB MANUAL : 0dB to +36dB Sync System Internal / Bus synchronization Internal synchronization Internal / Bus synchronization Image output format Mono12, Mono10, Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 3.0W (maximum) 2.8W (maximum) 2.7W (maximum) 3.3W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 34g Approx. 33g Approx. 34g Approx. 33g Operation Assurance Temperature : 0° C to 40° C (below 60° C on cabinet surface) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MG : with Dust proof glass, MN : using NIR sensor *2 : GS-CMOS : Global shutter CMOS Model*1 BU040MCG BU160MCG BU238MC BU040MCF BU160MCF BU238MCF BU300MCF NEW BU302MCG BU302MCF B/W | COLOR COLOR Pixles 0.4M 1.6M 2.3M 3.1M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1/2.9 type GS-CMOS 1/2.9 type GS-CMOS 1/1.2 type GS-CMOS 1/3 type GS-CMOS 1/1.8 type GS-CMOS (IMX287LQR) (IMX273LQR) (IMX174LQJ) (IMX900AQR) (IMX252LQR) Resolution 720(H) x 540(V) 1,440(H) x 1,080(V) 1,920(H) x 1,200(V) 2,048(H) x 1,536(V) Frame rate Bayer8 / Mono8 : 523 fps (High-fps Bayer8 / Mono8 : 240 fps (High-fps mode), 437 fps (Normal mode) mode), 227 fps (Normal mode) Bayer8 : 165 fps Bayer8 / Mono8 : 64 fps Bayer8 / Mono8 : 120 fps Pixel size 6.90μm x 6.90μm 3.45μm x 3.45μm 5.86μm x 5.86μm 2.25μm x 2.25μm 3.45μm x 3.45μm MANUAL: 1.07μs to 5.49μs (Short MANUAL : 1.08μs to 14.44μs (Short MANUAL : 1.08μs to 13.31μs (Short exposure mode), 20μs to 16s MANUAL : 30μs to 16s exposure mode), 14μs to 16s exposure mode), 22μs to 16s Electronic shutter AE : 20μs to 1s Random Trigger Shutter : AE: 14μs to 1s AE : 22μs to 1s Random Trigger Shutter : 20μs to 16s (Edge / Bulk mode), 30μs to 16s (Edge / Bulk mode), Random Trigger Shutter: Random Trigger Shutter : 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 30μs to 16s (Edge or Bulk mode), 22μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Color filter RGB primary color mosaic Standard sensitivity MCG : 2,300 lx, MCF : 2,500 lx MCG : 2,300 lx, MCF : 2,400 lx MC : 3,700 lx , MCF : 4,100 lx 2,870 lx MCG : 2,400 lx, MCF : 2,650 lx (F4, 1/500s) (F2.8, 1/250s) (F8, 1/200s) (F5.6, 1/83.3s) (F4, 1/120s) Minimum sensitivity MCG : 1 lx, MCF : 3 lx MCG : 1 lx, MCF : 3 lx MC : 8 lx, MCF : 9 lx 2 lx MCG : 3 lx, MCF : 3 lx (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +18dB, Video level : 50%) (F1.4, Gain: +36dB, Video level: 50%) F1.4, Gain : +36dB, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0dB to +36dB, +36dB, MANUAL : 0dB to +36dB, AGC : 0dB to +24dB MANUAL : -6dB to +18dB MANUAL: 0 to AGC: 0 to +24dB AGC : 0dB to +24dB White Balance MWB, OPWB Sync System Internal / Bus synchronization Image output format RGB, BGR, YUV422, YUV411, V422, YUV411, Bayer12, Bayer10, Bayer8, Mono8 Bayer8 RGB, BGR, YU Bayer12, Bayer10, Bayer8, Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 3.2W (maximum) 3.4W (maximum) 2.9W (maximum) 3.0W (maximum) 3.6W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 33g Approx. 32g Approx. 33g Temperature : 0° C to 40° C Temperature : 0° C to 40° C Temperature : 0° C to 40° C Operation Assurance Temperature : 0° C to 40° C (below 60° C on cabinet surface) (below 50° C on cabinet surface) (below 60° C on cabinet surface) (below 50° C on cabinet surface) Humidity : 10% to 90% (no condensation) Humidity : 10% to 90% Humidity : 10% to 90% Humidity : 10% to 90% (no condensation) (no condensation) (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MCG : with Dust proof glass, MCF : with IR cut filter *2 : GS-CMOS : Global shutter CMOS 15

BU Series Specifications Model*1 BU406MC BU602MC BU406MCF BU502MCF BU505MCG BU505MCF BU602MCF BU805MCF B/W | COLOR COLOR Pixles 4.2M 5M 5M 6.2M 8.1M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1/1 type GS-CMOS 1/1.8 type GS-CMOS 2/3 type GS-CMOS 1/1.8 type RS-CMOS 2/3 type GS-CMOS (CMV4000-3E5C) (IMX547AAQ) (IMX250LQR) (IMX178LQJ) (IMX546AAQ) Resolution 2,048(H) x 2,048(V) 2,448(H) x 2,048(V) 2,448(H) x 2,048(V) 3,072(H) x 2,048(V) 2,848(H) x 2,848(V) Frame rate Bayer8 : 90 fps Bayer8 : 75.6 fps (High Framerate Mode), 74.9 fps (Standard Mode) Bayer8 / Mono8 : 75 fps Bayer8 / Mono8 : 60 fps Bayer8 : 46.7 fps Pixel size 5.5μm x 5.5μm 2.74μm x 2.74μm 3.45μm x 3.45μm 2.4μm x 2.4μm 2.74μm x 2.74μm MANUAL : 1.02μs to 2.47μs MANUAL : 1.08μs to 14.41μs MANUAL : 30μs to 16s (Short exposure mode), (Short exposure mode), MANUAL : 1.02μs to 2.47μs 22μs to 16s MANUAL : 23.3μs to 16s (Short exposure mode), Electronic shutter Random Trigger Shutter : 10μs to 16s 30μs to 16s (Edge / Bulk mode), Random Trigger Shutter : AE : 22μs to 1s AE : 23.3μs to 1s 10μs to 16s 50μs to Trigger width (Level mode) 10μs to 16s (Edge / Bulk mode), Random Trigger Shutter : Random Trigger Shutter : 23.3μs to Random Trigger Shutter : 50μs to Trigger width (Level mode) 22μs to 16s (Edge / Bulk mode), 16s (Edge / Bulk mode) 10μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Color filter RGB primary color mosaic Standard sensitivity MC : 3.700 lx, MCF : 4,100 lx 2,390 lx MCG : 3,000 lx, MCF : 3,300 lx MC : 3,000 lx, MCF : 3,400 lx 3,000 lx (F8, 1/90s) (F4, 1/83.3s) (F5.6, 1/75s) (F5.6, 1/62.5s) (F5.6, 1/52.6s) Minimum sensitivity MC : 8 lx, MCF : 9 lx 3 lx MCG : 2 lx, MCF : 2 lx MC : 6 lx, MCF : 7 lx 2 lx (F1.4, Gain : x8, Video level : 50%) (F1.4, Gain: +36dB, Video level: 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain: +36dB, Video level: 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : x1 to x8 MANUAL : 0dB to +36dB MANUAL : 0dB to +36dB, AGC : 0dB to +24dB 0dB to +24dB (MANUAL, AGC) MANUAL : 0dB to +36dB White Balance MWB, OPWB Sync System Internal / Bus synchronization Internal synchronization Internal / Bus synchronization Image output format Bayer8 Bayer12, Bayer10, Bayer8 RGB, BGR, YUV422, YUV411, Bayer12, Bayer10, Bayer8, Mono8 Bayer12, Bayer10, Bayer8 Readout mode All pixel, Scalable, Decimation, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, All pixel, Scalable, Binning, Binning,Mirroring, Flip Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 2.7W (maximum) 3.6W (maximum) 3.0W (maximum) 2.7W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 32g Approx. 33g Temperature : 0° C to 40° C Temperature : 0° C to 40° C Temperature : 0° C to 40° C Operation Assurance (below 50° C on cabinet surface) (below 60° C on cabinet surface) (below 50° C on cabinet surface) Temperature : 0° C to 40° C (below 60° C on cabinet surface) Humidity : 10% to 90% Humidity : 10% to 90% Humidity : 10% to 90% Humidity : 10% to 90% (no condensation) (no condensation) (no condensation) (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MCG : with Dust proof glass, MCF : with IR cut filter *2 : GS-CMOS : Global shutter CMOS, RS-CMOS : Rolling shutter CMOS Model*1 BU1203MC BU1203MCF BU1207MCF BU1208MCF BU2006MCF BU2409MCG BU2409MCF B/W | COLOR COLOR Pixles 12M 12.3M 20M 24.6M Interface USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) Imager*2 1/1.7 type RS-CMOS 1.1 type GS-CMOS 1/1.1 type GS-CMOS 1.0 type RS-CMOS 1.2 type GS-CMOS (IMX226CQJ) (IMX253LQR) (IMX545AAQ) (IMX183CQJ) (IMX540LQR) Resolution 4,000(H) x 3,000(V) 4,096(H) x 3,000(V) 4,096(H) x 3,008(V) 5,472(H) x 3,648(V) 5,328(H) x 4,608(V) Frame rate Bayer8 / Mono8 : 30 fps Bayer8 : 31 fps Bayer8 : 30.8 fps Bayer8：19 fps Bayer8 : 15 fps Pixel size 1.85μm x 1.85μm 3.45μm x 3.45μm 2.74μm x 2.74μm 2.4μm x 2.4μm 2.74μm x 2.74μm MANUAL : 23.3μs to 16s MANUAL : 1.51μs to 16.11μs MANUAL : 1.02μs to 2.47μs AE : 23.3μs to 1s (Short exposure mode), (Short exposure mode), MANUAL : 56.4μs ~ 16s MANUAL :18μs to 16s Electronic shutter Random Trigger Shutter : 26μs to 16s 14μs to 16s AE : 56.4μs ~ 1s Random Trigger Shutter : 23.3μs to 16s (Edge mode), Random Trigger Shutter : Random Trigger Shutter : Random Trigger Shutter : 18μs to 16s (Edge / Bulk mode), 50μs to Trigger width (Level mode) 26μs to 16s (Edge / Bulk mode), 14μs to 16s (Edge / Bulk mode), 59.4μs ~ 16s (Edge / Bulk mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) 50μs to Trigger width (Level mode) Scan method Progressive Color filter RGB primary color mosaic Standard sensitivity MC : 4,200 lx, MCF : 4,600 lx 1,425 lx 2,300 lx 1,940 lx MCG : 1,850 lx, MCF : 2,000 lx (F8, 1/30s) (F5.6, 1/31s) (F5.6, 1/35.7s) (F5.6, 1/19s) (F8, 1/20s) Minimum sensitivity MC : 13 lx, MCF : 14 lx 1 lx 2 lx 4 lx MCG : 1 lx, MCF : 1 lx (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) (F1.4, Gain : +24dB, Video level : 50%) (F1.4, Gain : +36dB, Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0 to +18dB MANUAL : 0 to +36dB MANUAL : 0dB to +24dB, AGC : 0dB to +24dB MANUAL : 0 to +36dB White Balance MWB, OPWB Sync System Internal synchronization Internal / Bus synchronization Internal synchronization Internal / Bus synchronization Image output format Bayer8, Mono8 Bayer12, Bayer10, Bayer8 RGB, BGR, YUV422, YUV411, Bayer12, Bayer10, Bayer8, Mono8 Bayer12, Bayer10, Bayer8 Readout mode All pixel, Scalable, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip All pixel, Scalable, Mirroring, Flip All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply DC5V ±5% (from USB connector) Power consumption 2.7W (maximum) 3.1W (maximum) 2.8W (maximum) 2.9W (maximum) 3.3W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 16 (D)mm (not including protrusion) Mass Approx. 32g Approx. 34g Approx. 33g Approx. 34g Approx. 33g Temperature : 0° C to 40° C Operation Assurance (below 50° C on cabinet surface) Temperature : 0° C to 40° C Humidity : 10% to 90% (below 60° C on cabinet surface) (no condensation) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2 *1 : MCG : with Dust proof glass, MCF : with IR cut filter *2 : GS-CMOS : Global shutter CMOS, RS-CMOS : Rolling shutter CMOS 16

Global Standard GigE Camera BG Series BG Series Outline BG series has Gigabit Ethernet interface for image output and camera control. Compact and light, suitable for set in equipment. Details are here. 3 years warranty. Wide product range from 0.4MP (291fps) to 5MP (22fps). BG Series 29mm × 29mm × 40mm 60g Features Dimensions Easy operation BG040M series BG160M series • "Teli Core Technology" contributes to the enhancement of the response BG302LM series speed of camera systems. BG505LM series • "Gigabit Ethernet interface" makes PC connection easier. • Power supply complies with Power over Ethernet (PoE) based on IEEE802.3af. 2-M2 Depth of screw 4 52 (6.3) 29 (12) 40 20 • Body size in most compact class is suitable for setting in equipment. • LAN cable is adopted for flexible connection to equipment which needs long cable. • TELI original software "TeliCamSDK" is available to free download as SDK. C-Mount Various function 4.8 9 • "Scalable mode" achieve higher speed image output.(*1) *functions and modes of *1 above are different depend on model. 6-M3 Depth of screw 3 23.5 Accessory information (options) 15 23.7 4-M2 Depth of screw 3 • LAN cable (Category 5e or more) • Lens P33 - 36 Camera Data • C/CS mount converting ring P36 • Spectral sensitivity characteristics P22 - 24 • Tripod attachment P30 • Pin assignment P29 Specifications Model*1 BG040M BG160M BG300MG NEW BG302LMG BG505LMG B/W | COLOR B/W Pixles 0.4M 1.6M 3.1M 5M Interface Gigabit Ethernet IEEE802.3ab (1000BASE-T) conformity Imager*2 1/2.9 type GS-CMOS 1/2.9 type GS-CMOS 1/3 type GS-CMOS 1/1.8 type GS-CMOS 2/3 type GS-CMOS (IMX287LLR) (IMX273LLR) (IMX900AMR) (IMX265LLR) (IMX264LLR) Resolution 720(H) x 540(V) 1,440(H) x 1,080(V) 2,048(H) x 1,536(V) 2,448(H) x 2,048(V) Frame rate Mono8 : 291 fps Mono8 : 72 fps Mono8 : 36 fps Mono8 : 22 fps Pixel size 6.90μm x 6.90μm 3.45μm x 3.45μm MANUAL : 1.08μs to 5.49μs MANUAL : 1.08μs to 14.44μs MANUAL : 1.08μs to 13.31μs (Short exposure mode), (Short exposure mode), MANUAL : 30μs to 16s (Short exposure mode), 20μs to 16s 14μs to 16s AE : 30μs to 1s 32μs to 16s Electronic shutter AE : 20μs to 1s AE : 14μs to 1s Random Trigger Shutter : AE : 32μs to 1s Random Trigger Shutter : 20μs to 16s (Edge / Bulk mode), Random Trigger Shutter : 30μs to 16s (Edge / Bulk mode), Random Trigger Shutter : 200μs to Trigger width (Level mode) 14μs to 16s (Edge / Bulk mode), 200μs to Trigger width (Level 32μs to 16s (Edge / Bulk mode), 200μs to Trigger width mode) 200μs to Trigger width (Level mode) (Level mode) Scan method Progressive Standard sensitivity 1,890 lx (F5.6, 1/333s) 1,700 lx (F5.6, 1/77s) 2,010 lx (F5.6, 1/83.3s) 3,850 lx (F11, 1/36s) 2,600 lx (F11, 1/22s) 1 lx 1 lx 1 lx 2 lx 1 lx Minimum sensitivity (F1.4, Gain : +36dB, (F1.4, Gain : +36dB, (F1.4, Gain : +36dB, (F1.4, Gain : +24dB, (F1.4, Gain : +36dB, Video level : 50%) Video level : 50%) Video level : 50%) Video level : 50%) Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0 to +36dB, MANUAL : 0 to +24dB, MANUAL : 0 to +36dB, AGC : 0 to +24dB AGC : 0 to +24dB AGC : 0 to +24dB Sync System Internal synchronization Image output format Mono12, Mono10, Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply PoE (Power over Ethenet) / DC12V ±10% Power consumption PoE : 3.3W (maximum) PoE : 3.0W (maximum) PoE : 3.2W (maximum) DC12V : 2.7W (maximum) DC12V : 2.4W (maximum) DC12V : 2.7W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 40 (D)mm (not including protrusion) Mass Approx. 59g Approx. 60g Operation Assurance Temperature : 0° C to 40° C (below 60° C on cabinet surface) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, GigE Vision, GenICam, PoE, IIDC2 *1 : MCG : with Dust proof glass, MCF : with IR cut filter *2 : GS-CMOS : Global shutter CMOS 17 29 20 12 20 7.3

BG Series Specifications Model*1 BG040MCG BG160MCG BG300MCG BG302LMCG BG505LMCG BG040MCF BG160MCF BG300MCF NEW BG302LMCF BG505LMCF B/W | COLOR COLOR Pixles 0.4M 1.6M 3.1M 5M Interface Gigabit Ethernet IEEE802.3ab (1000BASE-T) conformity Imager*2 1/2.9 type GS-CMOS 1/2.9 type GS-CMOS 1/3 type GS-CMOS 1/1.8 type GS-CMOS 2/3 type GS-CMOS (IMX287LQR) (IMX273LQR) (IMX900AMR) (IMX265LQR) (IMX264LQR) Resolution 720(H) x 540(V) 1,440(H) x 1,080(V) 2,048(H) x 1,536(V) 2,448(H) x 2,048(V) Frame rate Bayer8 : 291 fps Bayer8 : 72 fps Bayer8 : 36 fps Bayer8 / Mono8 : 36 fps Bayer8 / Mono8 : 22 fps Pixel size 6.90μm x 6.90μm 3.45μm x 3.45μm MANUAL : 1.08μs to 5.49μs (Short exposure mode), MANUAL : 30μs to 16s MANUAL : 1.08μs to 13.31μs (Short MANUAL : 1.08μs to 13.31μs (Short exposure mode), 20μs to 16s 14μs to 16s AE : 30μs to 16s exposure mode), 32μs to 16s Electronic shutter AE : 20μs to 1s AE : 14μs to 1s Random Trigger Shutter : AE : 32μs to 16s Random Trigger Shutter : 20μs to 16s (Edge / Bulk mode), Random Trigger Shutter : 30μs to 16s (Edge / Bulk mode), Random Trigger Shutter : 200μs to Trigger width (Level mode) 14μs to 16s (Edge / Bulk mode), 200μs to Trigger width 32μs to 16s (Edge / Bulk mode), 200μs to Trigger width (Level mode) 200μs to Trigger width (Level mode) (Level mode) Scan method Progressive Color filter RGB primary color mosaic Standard sensitivity MCG : 1,550 lx, MCF : 1,650 lx MCG : 2,800 lx, MCF : 2,900 lx MCG : 2,400 lx, MCF : 2,870 lx MCG : 2,500 lx, MCF : 2,600 lx MCG : 3,100 lx, MCF : 3,200 lx (F4, 1/333s) (F5.6, 1/77s) (F5.6, 1/83.3s) (F8, 1/36s) (F11, 1/22s) MCG : 2 lx, MCF : 2 lx MCG : 2 lx, MCF : 2 lx MCG : 2 lx, MCF : 2 lx MCG : 3 lx, MCF : 3 lx MCG : 1 lx, MCF : 1 lx Minimum sensitivity (F1.4, Gain : +36dB, (F1.4, Gain : +36dB, (F1.4, Gain : +36dB, (F1.4, Gain : +24dB, (F1.4, Gain : +36dB, Video level : 50%) Video level : 50%) Video level : 50%) Video level : 50%) Video level : 50%) Gamma / LUT γ=1.0 to 0.45 / Available Gain MANUAL : 0 to +36dB, AGC : 0 to +24dB MANUAL : 0 to +24dB, MANUAL : 0 to +36dB, AGC : 0 to +24dB AGC : 0 to +24dB White Balance MWB, OPWB Sync System Internal synchronization Image output format Bayer12, Bayer10, Bayer8 Bayer12, Bayer10, Bayer8, Mono8 Readout mode All pixel, Scalable, Binning, Decimation, Mirroring, Flip Power supply PoE (Power over Ethenet) / DC12V ±10% Power consumption PoE : 3.4W (maximum) PoE : 3.0W (maximum) PoE : 3.6W (maximum) DC12V : 2.8W (maximum) DC12V : 2.4W (maximum) DC12V : 2.9W (maximum) Lens mount C-Mount External dimension 29 (W)mm x 29 (H)mm x 40 (D)mm (not including protrusion) Mass Approx. 59g Operation Assurance Temperature : 0° C to 40° C (below 60° C on cabinet surface) Humidity : 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, GigE Vision, GenICam, PoE, IIDC2 *1 : MCG : with Dust proof glass, MCF : with IR cut filter *2 : GS-CMOS : Global shutter CMOS Appendix Featuring TELI original IP "Teli Core Technology" Models equipped with TELI's original IP core are now available one after another! FPGA + All-in-one GigE chip All hardware processing with All-in-one Hardware process Downsizing, Firmware process Register Setting No CPU and No soware CPU High Mode Setting USB / GigE Communication integration Data Bus Image FPGA Data Bus USB3 Sensor Driving LINK IP PHY TG Data Data GigE Bus Bus Downsizing and high speed response by high integration ! Teli Core Technology FPGA Hardware process Register Setting Firmware process CXP / USB / GigE ALU Communication Downsizing / MUX ess etc. Data Bus LINK IP Data Bus CoaXPr PHY USB3 Data Bus Image MAC IP Camera Link GigE Sensor Driving Comm. TG PHY Camera Link T Te e l Using conventional CPU core c i h C n o ol r oge y T Te e l c i h C n o ol r tting FPGA Hardware process oge y Register Se Firmware process CPU CXP / USB / GigE Communication Downsizing, Tel e ALU CoaXPress High Te i c h C n o o r log y Data Bus / MUX LINK IP USB Image etc. Data Bus Data Bus 3 MAC IP PHY GigE integration Sensor Driving TG MUX Camera Link Case of USB3 camera Case of GigE camera 18 Peripheral I/O

High reliability Camera Link Camera BC Series / CSC Series BC Series / CSCS60BM18 BC Series CSCS60BM18 Details are here. Details are here. BC040M Series / BC160M Series / CSCS60BM18 BC302LM Series / BC505LM Series 29mm x 29mm x 26.5mm 33g 29mm x 29mm x 26.5mm 44g Outline Cameras with Camera Link interface. Compact size of 29mm x 29mm and light weight, suitable for setting in equipment. Product range from 0.4MP (523fps) to 5MP (36fps). Features Easy operation • Powered by frame grabber board complying PoCL. • High accuracy of optical axes is guaranteed for CSCS60BM18. Various function • Higher speed image capturing is achieved by partial scanning function. • CSCS60BM18 has finer image processing functions. - Sequential shutter mode allows setting different condition of imaging and output. - Inverse function (horizontal / vertical) Dimensions BC040M series BC302LM series 2-M2 Depth2.5 BC160M series 15 BC505LM series CSCS60BM18 15 2-M2 Depth 2.5 29 39.5 (5.3) 2-M2 Depth3.4 29 39.5 7.5 5 C-Mount (13) 26.5 19.2 (13) 26.5 (5.3) 19.2 C Mount Guide hole 2 H7 Depth 2 2-M2 Depth 3.4 13 2 H7 Depth2 13 2-M2 Depth 3 4-M2 Depth3 3-M3 Depth3 16 21 16 21 M3 Depth 3 Accessory information (options) • Camera Link cable SDR-XXX, PoCL compatible (Depending on the grabber board to be connected) • Lens P33 - 36 • Tripod attachment P30 Camera Data • Spectral sensitivity characteristics P22 - 24 • Pin assignment P29 19 29 20 12 8 N.P. 12 9.55 29 20 8 12 N.P. 12 22.1 9.55
