Toshiba Teli CoaXPress 2.0 CMOS Camera EX Series leaflet

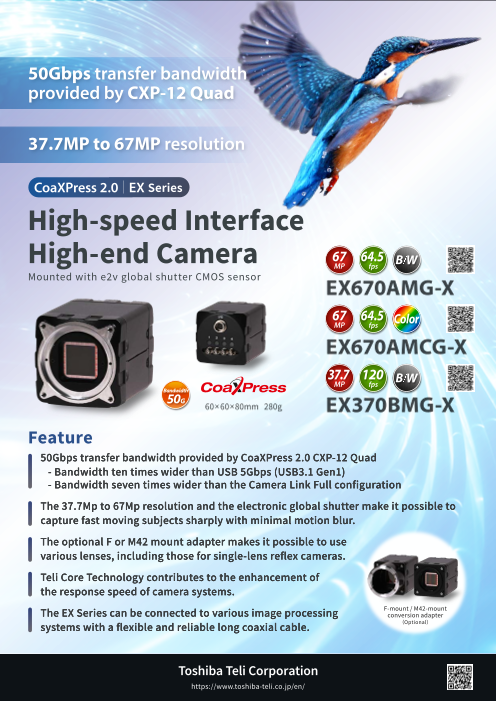

Series High-speed Interface High-end Camera     Mounted with e2v global shutter CMOS sensor            Bandwidth 50G 60× 60×80mm 280g  Feature 50Gbps transfer bandwidth provided by CoaXPress 2.0 CXP-12 Quad - Bandwidth ten times wider than USB 5Gbps (USB3.1 Gen1) - Bandwidth seven times wider than the Camera Link Full configuration The 37.7Mp to 67Mp resolution and the electronic global shutter make it possible to capture fast moving subjects sharply with minimal motion blur. The optional F or M42 mount adapter makes it possible to use various lenses, including those for single-lens reflex cameras. Teli Core Technology contributes to the enhancement of the response speed of camera systems. The EX Series can be connected to various image processing F-mount / M42-mount conversion adapter systems with a flexible and reliable long coaxial cable. （Optional） https://www.toshiba-teli.co.jp/en/

Specifications Wider shooting field of view with high resolution of 37.7 MP to 67MP B/W or COLOR B/W COLOR VGA（640×480） Pixels 37.7M 67M Model Items EX370BMG-X EX670AMG-X EX670AMCG-X HD（1,280×720） VGA Interface CoaXPress 2.0 Full-HD（1,920×1,080） Imager CMOS image sensor Imager model EV2S36MB EV2S67MB EV2S67MC HD 5M 5M（2,448×2,048） Resolution 6,144(H) x 6,144(V) 8,192(H) x 8,192(V) (1)120 fps, (2)42.1 fps, (1)64.5 fps, (2)31.6 fps, Frame rate *1 12.3M（4,096×3,000） (3)21 fps, (4)10.7 fps (3)15.8 fps, (4)8 fps Pixel size 2.5 μm x 2.5 μm 37.7M（6,144×6,144） Scanning area 15.36 mm(H) x 15.36 mm(V) 20.48 mm(H) x 20.48 mm(V) Image size 4/3 type 1.8 type (APS-C) 67M（8,192×8,192） Aspect ratio 1:1 Full-HD Scanning Progressive 12M Electronic shutter method Global shutter 37.7M Random Trigger Shutter Type External Trigger / Soware Trigger / Link Trigger Random Trigger Shutter Mode Edge / Level / Bulk (255 times) Sequential shutter Max. 16 entry 67M * The above image is the result of software simulation. MANUAL : 10 μs to 1 s Exposure Time Random Trigger Shutter : 10 μs to 1 s (Edge or Bulk mode), 200 μs to Trigger width (Level mode) Synchronization System 50Gbps transfer bandwidth provided Internal Optical glass/filter Dust-proof glass by CoaXPress 2.0 CXP-12 Quad Sensitivity 2,350 lx (F5.6, 1/125 s) 2,500 lx (F8, 1/66.7 s) 2,100 lx (F5.6, 1/66.7 s) Minimum illuminance 2 lx *2 1 lx *3 1 lx *3 Comparison of high-speed interface  Gain | High Gain Mode MANUAL : 0 to +36 dB | OFF / x4      Black Level -25% to +25% LUT In 12 bit, Out 12 bit  Image Output Format Mono12, Mono10, Mono8 Bayer12, Bayer10, Bayer8 Readout Mode All pixel, ROI, Binning, Mirroring, Flip 
 External trigger input Low: 0 to 0.5 V, High: 2 to 24.0 V High active / Low active, Pulse width: 200 μs (minimum) Power supply PoCXP / DC+24 V (18.5 V to 26 V) (HIROSE connector)  ­ Power consumption 13.6 W max. *4 13.3 W max. *5 13.6 W max. *5 Lens mount | Flange back Mountless (Φ50 H7) | 8 mm 
 Mount adapter option F-mount / M42-mount conversion adapter External dimension 60(W) x 60(H) x 80(D) mm (Not including protruding parts)  ­ Mass approx. 280g Operation temperature 0 oC ~ 40 oC (below 60 oC on cabinet surface)*6 0 oC ~ 40 oC (below 60 oC on cabinet surface)  Operation humidity 10% to 90% (no condensation) Conformity CE, FCC, RoHS, WEEE, CoaXPress 2.0, GenICam, IIDC2   *1 : (1) = CXP-12 Quad, Mono8 / Bayer8, (2) = CXP-6 Quad, Mono8 / Bayer8, (3) = CXP-12, Mono8 / Bayer8, (4) = CXP-6, Mono8 / Bayer8 *2 : F1.4, Gain : +36 dB, Video level : 50% *3 : F1.4, Gain : +36 dB, High Gain Mode=x4, Video level : 50% * These are the data transfer bands of each interface and are different from the video data transfer bands. *4 : All pixel, CXP-12 Quad output *5 : All pixel, High Gain Mode=x4, CXP-12 Quad output *6 : Below 75 oC on Image sensor TeliCamSDK Application Outline drawing ■ Varieties of functions for easy programming C/C++ DNET*1 GenTL*1,*2 ■ Easy to capture image TeliCamSDK ■ GEN<i>CAM available Function setting Image capture ■ Abundant sample code GenAPI, XML Image convert �� �� �.� Register R/W Image storage ■ Easy to understand manuals System Enumeration Cameras ■ Unified SDK for USB3, GigE & CXP ■ Supports Python library “pytelicam” *3 USB3 USB3 CXP GigE ■ ImageJ plug-in “ImageJ_TeliPlugin” *4 �-M� Depth �.� Flange focus �（in air） �.� �� H� +�.��� � P.C.D �� � � � Depth � / *5 Windows Linux OS �� Intel / AMD �-M� Depth �.� Distribution Ubuntu 10 11 ARM 18.04 LTS 20.04 LTS 22.04 LTS amd64 amd64 amd64 Support ✓ ✓ ✓ ✓ ✓ ✓ TeliCamSDK for Linux supported ARM architectures. - Jetson nano / Raspberry pi 4 *6 *1: for Windows / *2: Supported USB and CXP / *3: Compatible with TeliCamSDK v4.0.0.1 or later / *4: Compatible with TeliCamSDK v4.0.1.1 or later / *5: Please contact us for other OS and distributions. / *6: With a GigE camera, image might be missed depending on PC specifications. Before using this product, please read “Operation Manual“ carefully in order to use this product safely and correctly. Notes on Safety If this product should be used in the extraordinary conditions or environments, or if you have any questions or problems, please contact our sales division. https://www.toshiba-teli.co.jp/en/ teli camera ●The information of this catalog is subject to change without notice. The information of this catalog is current as of October 2024. ●Company name, product name or logo might be trademark or registered trademark of each company or organization. ●We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user. 4000-0513-2410 �� �� ��.� ��.� �.�
