Product list of Vigor Electric Corp.,
Product list of Vigor Electric Corp.,
VB Series - Peripheral - Connection Cable
VBUSB-200
Connection Cable
Cable between a PLC (CP1 A-type USB) and Computer (A-type USB port); Length: 200cm (6'7")
VH Series - Main Unit
VH-32MR
VH Main Unit
16 DI (DC 24V sink) ; 16 DO (Relay); AC Power Input; DC 24V 420mA Output
VH Series - Main Unit
VH-40MR
VH Main Unit
24 DI (DC 24V sink) ; 16 DO (Relay); AC Power Input; DC 24V 420mA Output
VH Series - Main Unit
VH-60MR
VH Main Unit
36 DI (DC 24V sink) ; 24 DO (Relay); AC Power Input; DC 24V 420mA Output
VH Series - Main Unit
VH-20AR
VH Analog Main Unit
DC 24V Power Input; 8 points DC24V Input; 6 points Relay Output build-in 4 channels 12-bit Analog Input; selectable of Voltage or Circuit I/O (±10V / 4~20 mA / ± ...
VH Series - Input/Output Expansion Unit
VH-32ER
Input/Output Expansion Unit
AC Power Input; 16 points DC 24V Signal Input; 16 points Relay Output; DC 24V 420mA output
VH Series - Input/ Output Expansion Module
VH-32ER
Input/ Output Expansion Module
20 points DC 24V Signal Input; 8 points Relay Output
PLC
PLC - VS Series
* For VS Series, More Function powerful、Rapider of execution、More competitive. * VS Series PLC family includes VS1 General type、VS2 Advanced type、VSM Motion Control type and VS3 Powerful type. * Vigor supplies PLC from basic control to a ...
PLC
VB Series
*VB series PLC family includes VB0 general type, VB1 motion control type and VB2 high powerful programmable controller. *VB0 series is applicable to a variety of general automation control system. *VB1 series is applicable to positioning and high sp...
VB Series - Main Unit
VB0-14M★-◆
VB0 series Main Unit
8 points, DC 24V Signal Input ; 6 points output, DC 24V 420mA output; Connecting I/O with barrier terminal blocks
VB Series - Main Unit
VB0-20M★-◆
VB0 series Main Unit
12 points, DC 24V Signal Input ; 8 points output, DC 24V 420mA output; Connecting I/O with barrier terminal blocks
VB Series - Main Unit
VB0-28M★-◆
VB0 Main Unit
16 points, DC 24V Signal Input ; 12 points output, DC 24V 420mA output; Connecting I/O with barrier terminal blocks
VB Series - Main Unit
VB0-32M★-◆
VB0 Main Unit
16 points, DC 24V Signal Input ; 16 points output, DC 24V 420mA output; Connecting I/O with barrier terminal blocks
VB Series - Main Unit
VB0-32M★-◆C
VB0 Main Unit
16 points, DC 24V Signal Input ; 16 points output, DC 24V 420mA output; Connecting I/O with ATX connector (including cables)
VB Series - Main Unit
VB1-14MT-D
VB1 Main Unit
DC 24V Power input; 8 DI (DC 24V); 6 DO(0.5A NPN Transistor); connected by barrier terminal
VB Series - Main Unit
VB1-24MT-D
VB1 Main Unit
DC 24V Power input; 14 DI (DC 24V); 10 DO(0.5A NPN Transistor); connected by barrier terminal
VB Series - Main Unit
VB1-32MT-D
VB1 Main Unit
DC 24V Power input; 16 DI (DC 24V); 16 DO(0.5A NPN Transistor); connected by barrier terminal
VB Series - Main Unit
VB1-28ML-D
VB1 Main Unit
DC 24V Power input, 4 Line-Driver and 12 DC24V Signal Inputs, 4 Line-Driver and 8 NPN transistor Outputs, the barrier terminal.
VB Series - Main Unit
VB2-32M★-◆C
VB2 Main Unit
16 DI (DC 24V); 16 DO; connected by ATX connector (including wires)

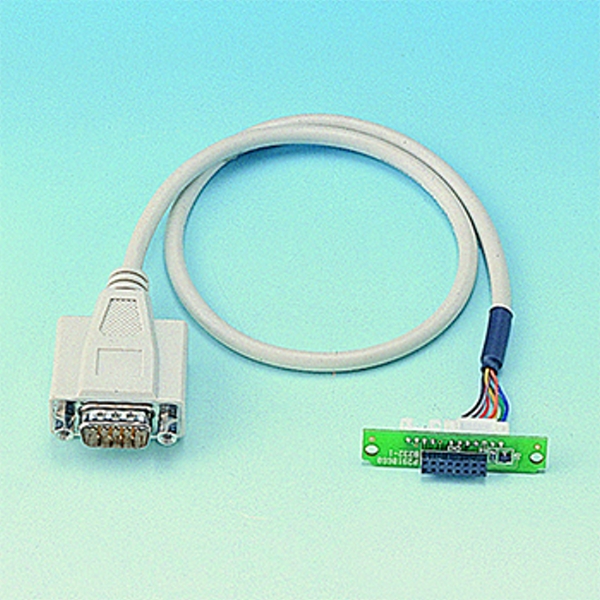

VB Series - Communication Card
VB-232
Communication Card
RS-232C Communication Expansion Card; Non-Isolated ; Max. Distance: 15 Meters ( 49 Foot)

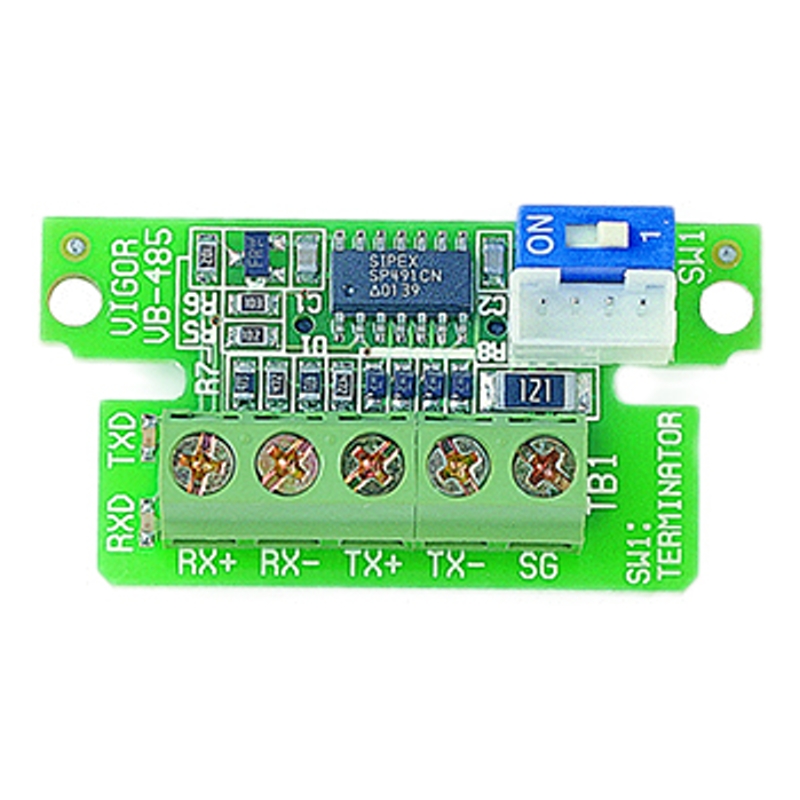

VB Series - Communication Card
VB-485
Communication Card
RS-422 / RS-485 Communication Expansion Card; Non-Isolated; Max. Distance: 50Meters / 164 foot
VB Series - Communication Card
VB-485A
Communication Expansion Module
RS-485 Communication Module; Photocoupler Isolated; Max. Distance: 1000 Meters / 3280 Foot
VB Series - Communication Module
VB-CADP
Dual-Port Communication Expansion Module
Dual-Port Communication Expansion Module; One Isolated RS-232C / RS-485 Port and one Isolated RS-485 Port; Max. Distance: 1000 Meters / 3280 Foot (RS-232C: 15 Mete...
VB Series - Communication Module
VB-ENET
Ethernet communication Module
Ethernet communication Module
VB Series - Input/Output Expansion Unit
VB-32E★-◆
Input/Output Expansion Unit
16 DI (DC 24V); 16 DO; connected by barrier terminal
VB Series - Input/Output Expansion Unit
VB-32E★-◆C
Input/Output Expansion Unit
16 DI (DC 24V); 16 DO; connected by ATX connector (including wires)
Input/Output Expansion Module
VB-8XY★ / VB-16XY★ / VB-16XY★-C / VB-32XY★
Input/Output Expansion Module
VB-8XY★: 4 DI (DC 24V); 4 DO; connected by barrier terminal VB-16XY★: 8 DI (DC 24V); 8 DO; connected by barrier terminal VB-16XY★-C: 8 DI (DC 24V); 8 DO; connect...
VB Series - Output Expansion Module
VB-8Y★ / VB-16Y★ / VB-8Y★-C
Output Expansion Module
VB-8Y★: 8 DO; connected by barrier terminal VB-16Y★: 16 DO; connected by barrier terminal VB-8Y★-C : 8 DO; connected by ATX connector (including wires)
