OVERLAPPING TRAY SHRINKER
FYT-501
FYT-501 series are our newly developed models that meet the newest over-lap packaging systems adopted by the industries in the world.
High speed, Nice packing, Functional, Simple maintenance, easy operation and manpower saving.
FEATURE
*Packing material is LDPE shrink film. Both transparent and printed shrink film can be used.

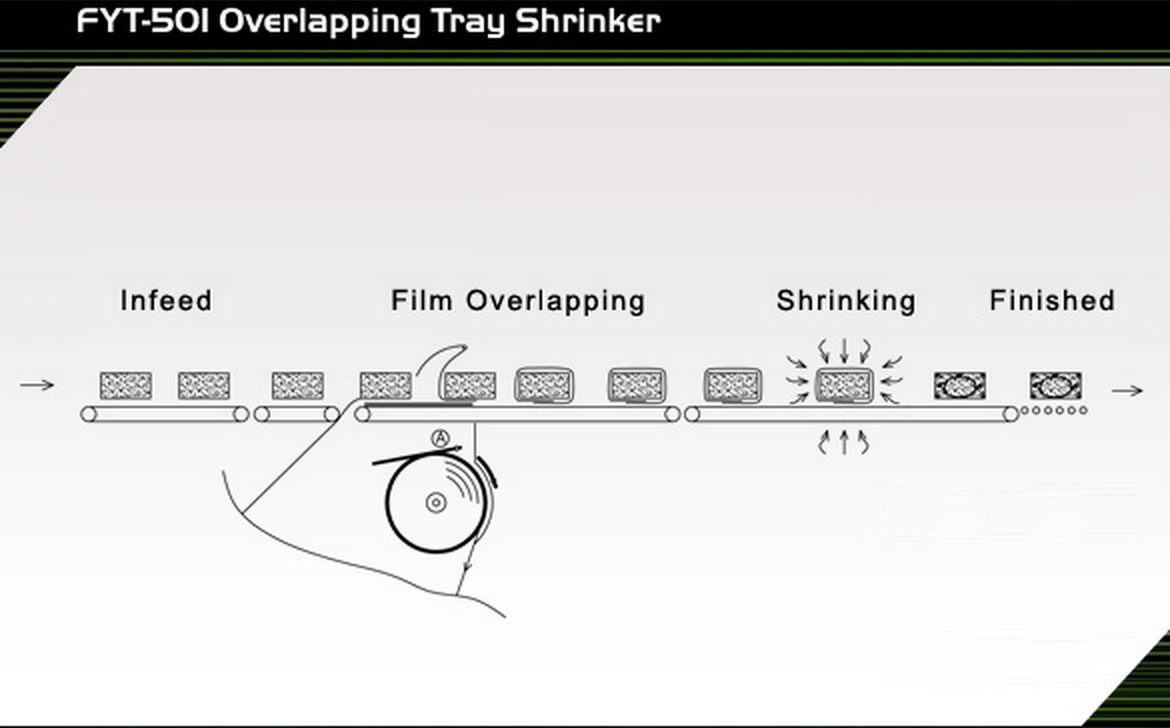

*Single film packing is overlapped at the bottom of the products, there are no heat seals on the packages.
*Multi-Axis of PC base programming control by color touch screen operation. Within specified range (LxWxH) for different products is completely simple for size-change on the screen.
*Each action and workstation of machines can be displaved on the screen for view.
*Film is delivered by Servo motor, so the film length is easily controlled. Sucking conveyor is equipped.
*Two film cradles of single-spindle air pressure can be exchanged. Each set can bear 60~90kgs of film roll.
*Film-rolling mechanism is controlled by Servo motor, the packing in different heights can proceed at any time.Automatic trip device for breakdown and lip type conveyor are also equipped.
*The machine can match the interlocking control system of before/after production lines.
The machine body is made of standard
| URL | http://www.fungyuan.com/htm/p-2-e.htm |
|---|---|
| SPECIFICATION: Overlapping Machine | Power: 220V/380V/x3Ø；50/60HZ HP: 6HP Air Pressure: 5~6kgf/cm2 100nl/min Packing Capacity: 20~30 packs/min Film Applied: PE transparent or printed film Effective Packing Size: 300~420(L) x 200~400(W) x 140~330(H) Machine Dimension: 2800(L) x 1190(W) x 1450(H) Conveyor surface height: 1000 H (Unit:mm) Machine Weight : 750 KGS |
| SPECIFICATION: Shrinking Tunnel | Power: 220V/380V/x3Ø；50/60HZ HP: 42HP Electric Heating: 32 KW Air Pressure: Packing Capacity: 5~25m/min Film Applied: 5-6 kgf/cm2 Effective Packing Size: Max:420(L) x 400(W) x 350(H) Machine Dimension: 2600(L) x 1330(W) x 1810(H) Conveyor surface height: 1000 H (Unit:mm) Machine Weight 800 KGS |
